2023 Caterpillar CAT333





Product Description

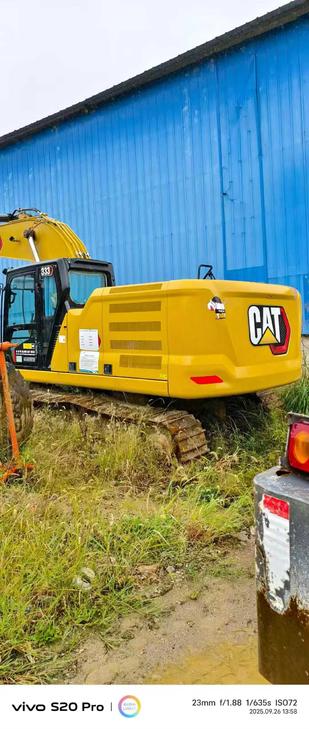

There is currently a second-hand 2023 model of Caterpillar 333 excavator. This is a top-quality device with complete procedures and can be transferred at any time. This excavator is expected to work for approximately 1,500 hours. With low usage frequency and proper maintenance, its overall condition is excellent. In terms of the power system, this excavator is equipped with a Caterpillar C7.1 ACERT engine, with a power output of up to 160 kilowatts, ensuring efficient and stable working performance. The engine adopts advanced fuel injection technology and cooling system, which not only improves fuel efficiency but also significantly reduces emissions, meeting environmental protection requirements. The hydraulic system is equipped with a high-performance dual-pump system and advanced hydraulic motors, which can provide powerful digging force and a smooth operating experience. The hydraulic pump is a variable piston pump, featuring excellent responsiveness and reliability, and can maintain stable output under various working conditions. In addition, the optimized design of the hydraulic system makes the operation more precise and improves work efficiency. The main advantages of this device include: The efficient power system ensures s
| Specifications | Value |
|---|---|
| No. | 977622 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 32900 |
| Bucket capacity (m³) | 1.88 |
| Boom length (mm) | 6150 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cat® C7.1 |
| Rated power (kw/rpm) | 225 |
| Cylinder diameter × stroke (mm) | 105*135 |
| Displacement (L) | 7.01 |
| Emission standard | Country IV |
| Rotation speed (rpm) | 11.6 |
| Bucket digging force (kN) | 197 |
| Rod digging force (kN) | 147 |
| Turning torque (Nm) | 111k |
| Maximum flow of main pump (l/min) | 560 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 29.8 |
| Working Hydraulic Circuit (Mpa) | 35 |
| Fuel Tank (L) | 474 |
| Hydraulic Tank (L) | 147 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 310 |
| Total transport length (mm) | 10450 |
| Total transport width (mm) | 3340/3540 |
| Total transport height (mm) | 3060 |
| Counterweight ground clearance (mm) | 1120 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 3130 |
| Total track length (mm) | 4860 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600/800 |
| Total track width (mm) | 3340 |
| Center distance of support wheel (mm) | 3990 |
| Maximum digging radius (mm) | 10680 |
| Maximum digging depth (mm) | 7370 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6510 |
| Maximum vertical digging depth (mm) | 6240 |
| Maximum excavation radius of stop surface (mm) | 10680 |
Overview
No.977622
Brand Name:
CaterpillarModel Number:
CAT333Year:
2023
Location:
Guangxi China
